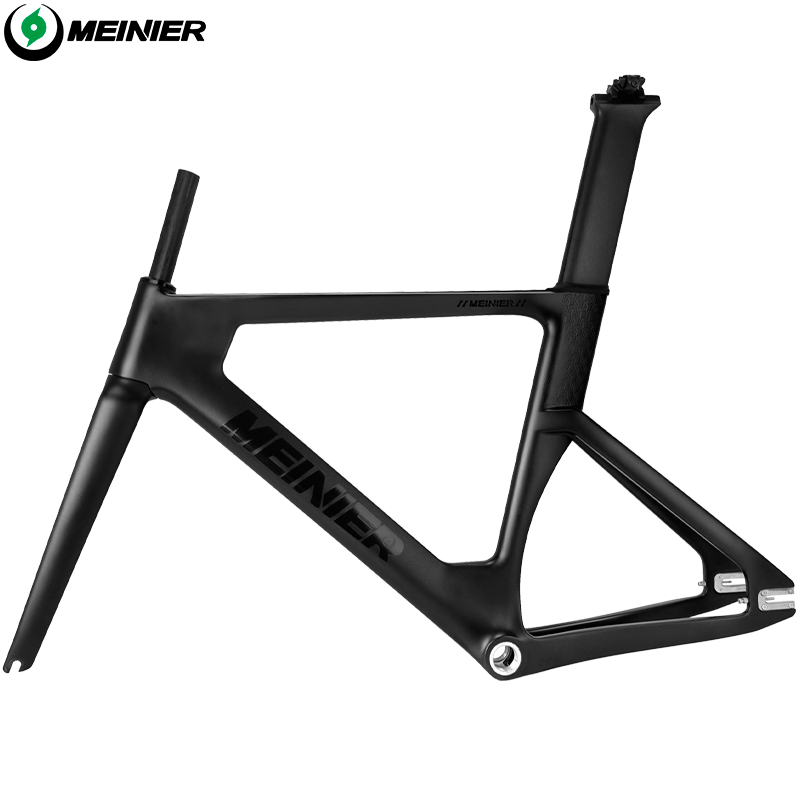

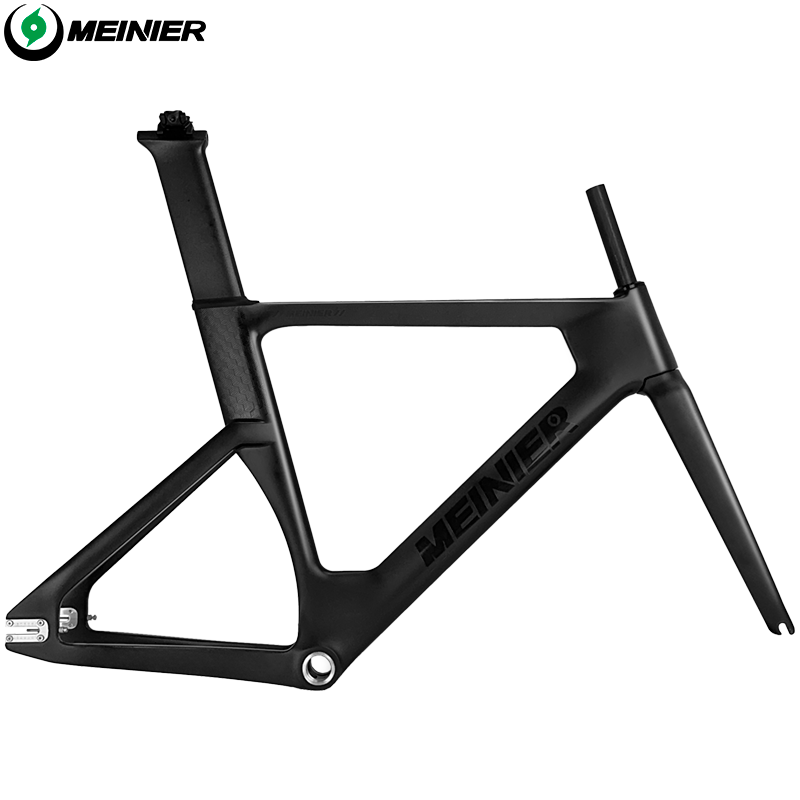

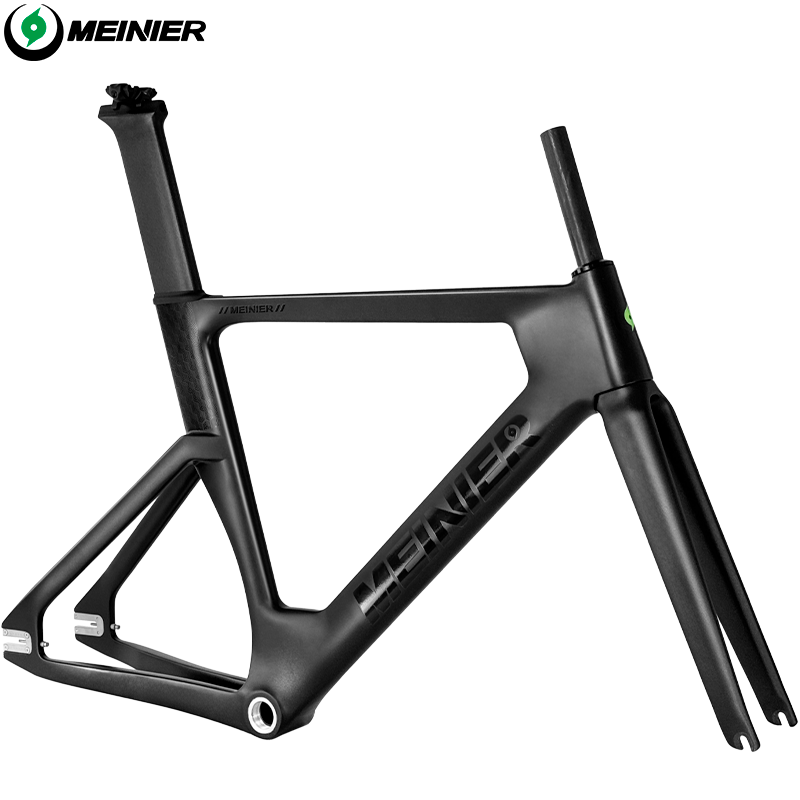

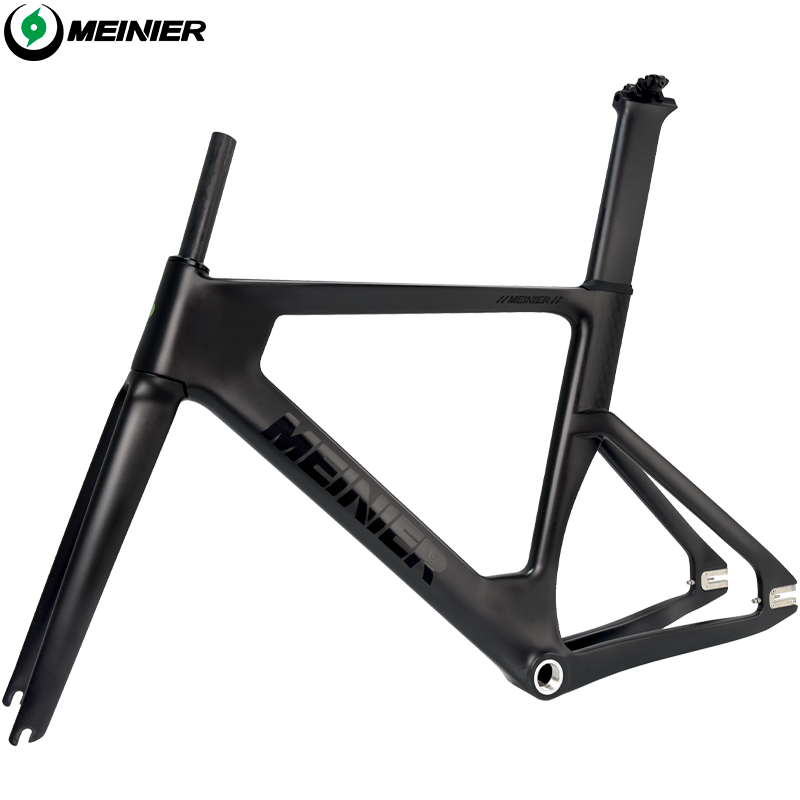

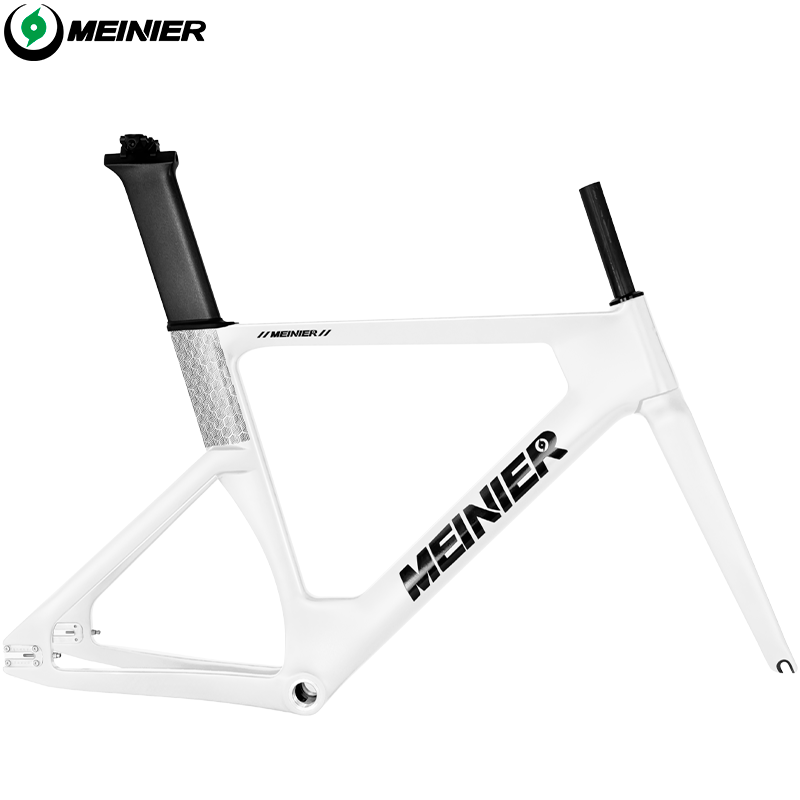

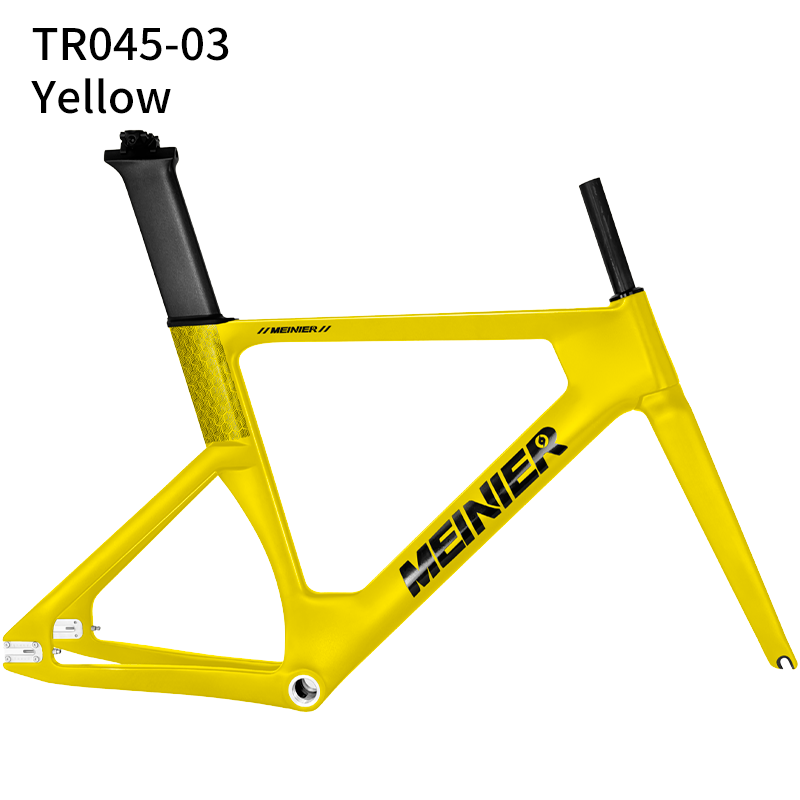

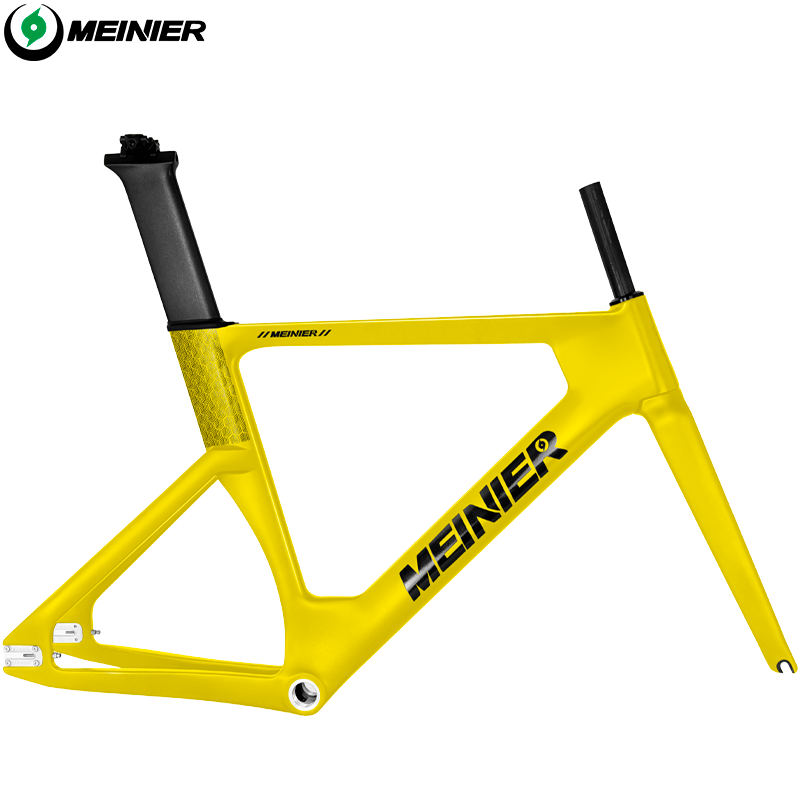

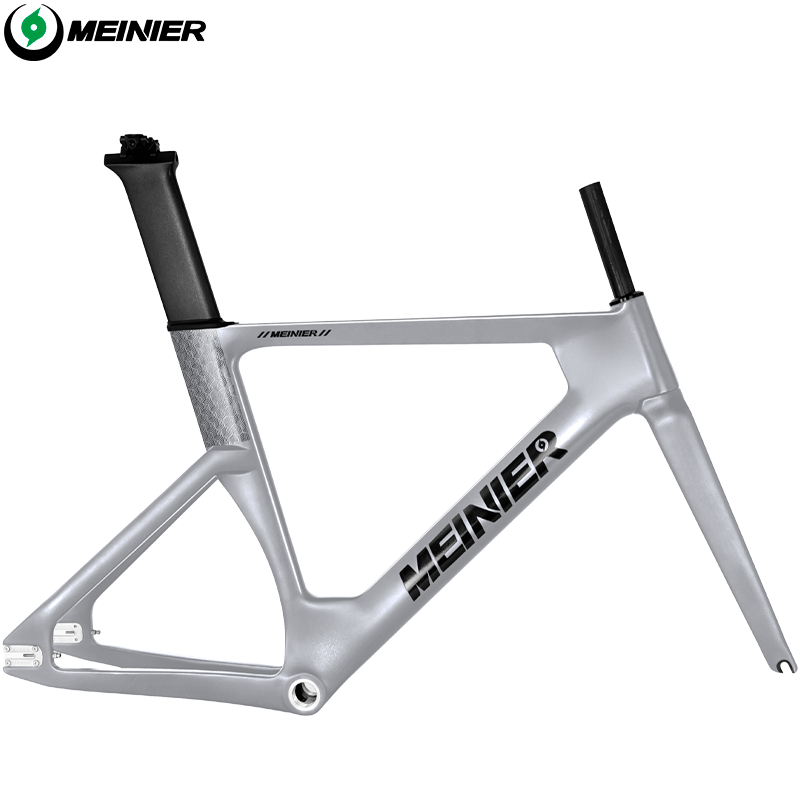

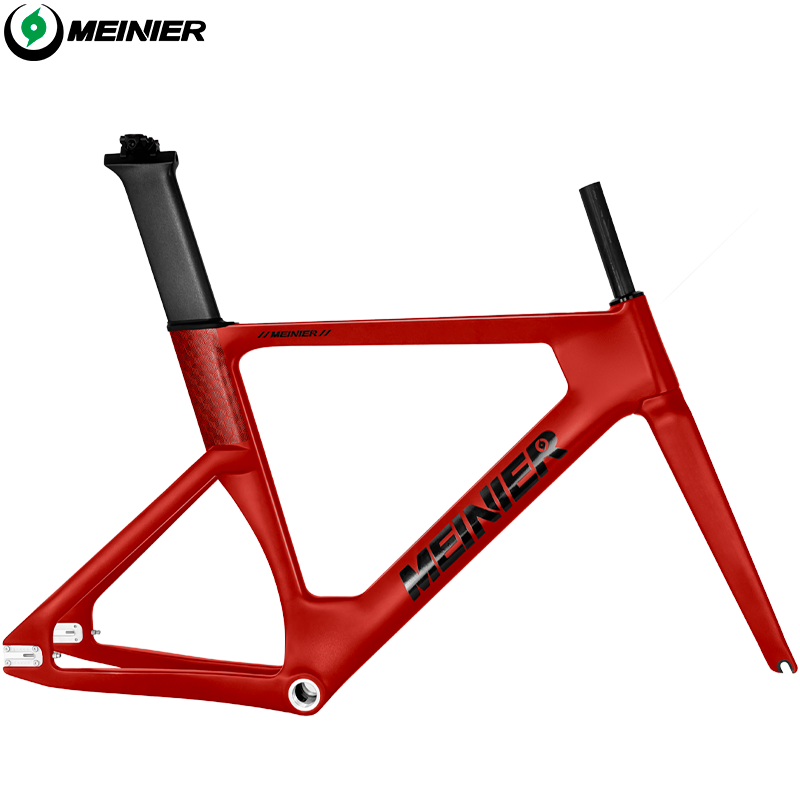

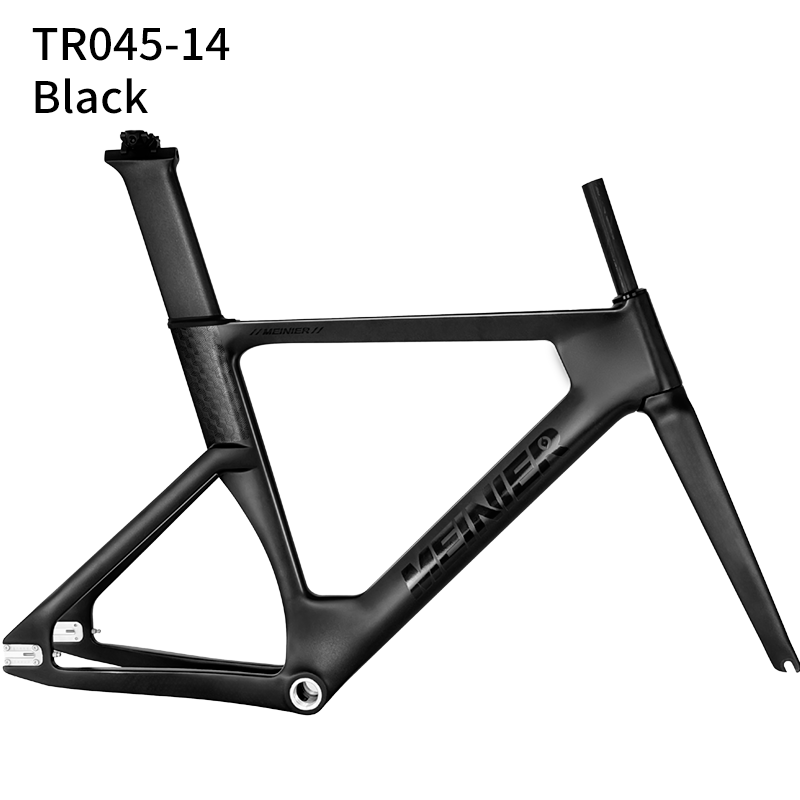

TR045 Introduction:
This frame model is MEINIER-TR045, made of T800 carbon fiber material, full carbon fiber frame, fork, seatpost, fine craftsmanship and EPS technology, perfectly balanced super strength
About Frame:
Material: Toray T800 Carbon Fibre
Type: Carbon Track Fixed Gear Road bike Frame
Bottom Bracket: BSA(68mm)
Headset Size: Top 1-1/8" , Down 1-1/2"

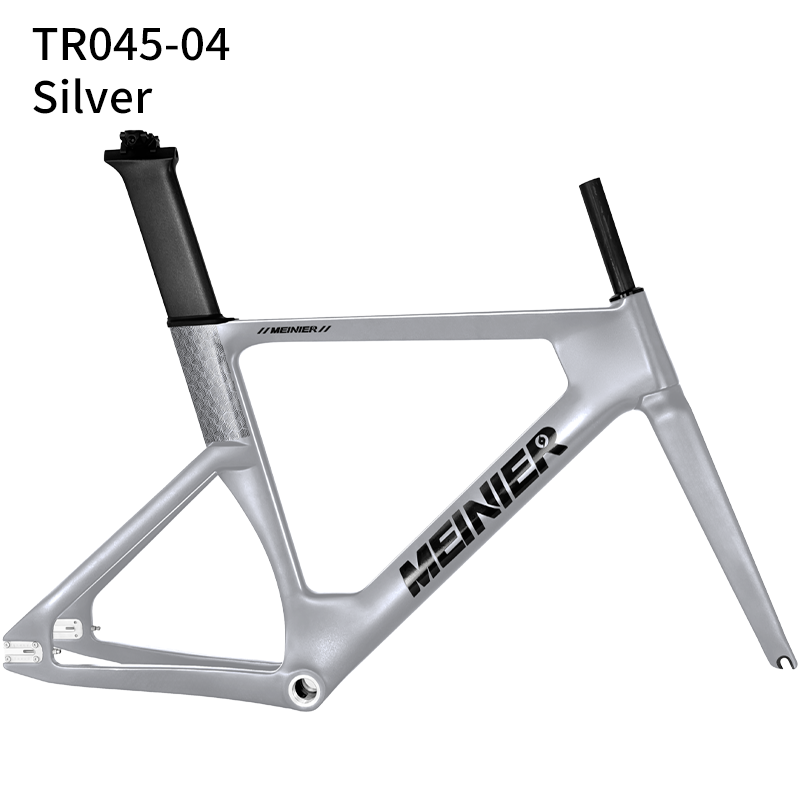

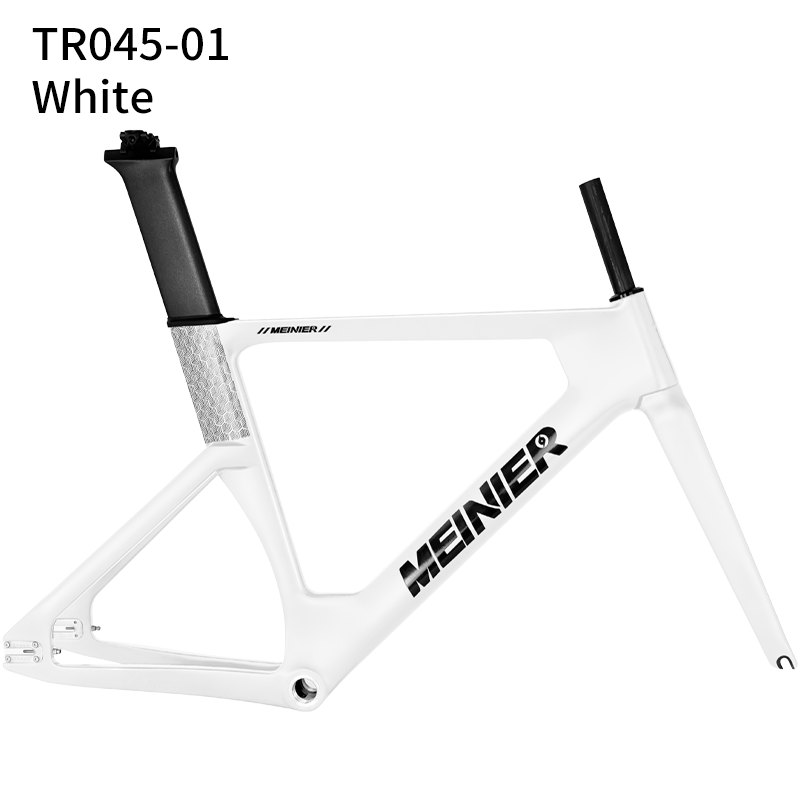

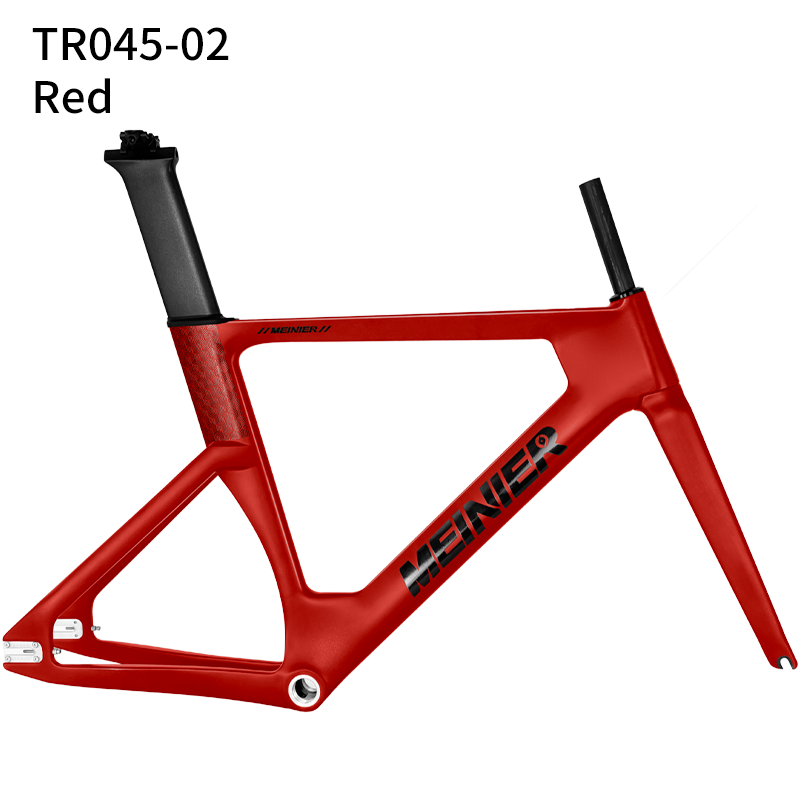

Available Painted Surface: Matte/Gloss
Maximum Load: 250kg
Maximum Tire: 700Cx25C
Frame Fit Hub: 120*9mm
Fork Fit Hub: 100*9mm
Frame Size: 700C For 49CM,51CM,54CM,57CM
SPECIFICATIONS:
|
Frame |
Model-TR-045,High Modulus Carbon ,Tapered Headtube |
|
Frok |
Model-TR-045 Custom Carbon Fork ,no brake,Tapered Headtube |
|
Seatpos |
Model-TR-045,High Modulus Carbon,350mm Installable 7*7mm saddle and 7*9mm saddle |
|
Material |
Toray T1000 Carbon Fibre |
|
Headset Size |
1-1/8(41.8mm) and 1-1/2(52mm) |
|
Bottom Bracket |
BSA(68mm) |
|
Fit for Hub |
Front(100x9mm),Rear(120x9mm) |
|
Maximum Load |
180kg |
|
Max Tire: |
700*25C |
|
Frame size |
49/51/54/57cm |
|
Wheels size |
700C |
|
Includes |
Frame +Fork +seatpost + seatpost clamp |
Carbon Track Frameset TR045 Geometry：
Features：
1. Reduce drag
Lightweight design: Carbon fiber is a very light but strong material that can significantly reduce the weight of the complete bicycle. The lightweight carbon frame reduces the contact pressure between the bicycle and the ground, and also reduces air resistance, making riding more labor-saving and faster.
Streamlined design: The processing technology of the carbon fiber frame allows it to achieve a variety of special-shaped designs, and the shape of the frame and the entire vehicle can be more streamlined. This design is not only beautiful, but also can greatly reduce wind resistance and increase riding speed.
Detail processing: The carbon fiber track frame uses EPS technology, which can fit the model perfectly and has a smooth interior. Every detail can be noticed during the manufacturing process, such as the seams of the frame, the smoothness of the surface, etc., which all help to reduce air resistance.
Custom Painting Services:
We have a professional design and painting team to provide you with professional customized painting services. Our service allows you to create a personalized paint job that truly makes your bike stand out.
You can contact us and we can customize the color and logo for you
2. Aerodynamic design
As the carbon fiber manufacturing process matures, designers can make subtle structural modifications to the frame based on professional wind tunnel test results to make it more aerodynamic. In this way, during riding, the airflow can pass smoothly through the frame and the rider, reducing unnecessary turbulence and resistance.
Carbon Track Bike Frame MEINIER-TR045 is High modulus carbon fixed gear bicycle frame, providing super high strength. Flat and oversized wide down tube, streamlined design adds stiffness and aerodynamics. Available in 49cm,51cm,54cm,57cm sizes.
Coordination of riding posture: In bicycle competitions, especially in track competitions, riders often adopt specific riding postures to cooperate with the aerodynamic design of the frame. For example, riders may lower their bodies to reduce the contact surface with the airflow and make the airflow pass more smoothly.
Application of team tactics: In team competitions, the team will adopt specific tactics to optimize the airflow. For example, when encountering strong crosswinds, the team will adjust the formation in time to reduce the impact of the crosswind on the riding speed.
